HML Horizontal Multistage Splitcase

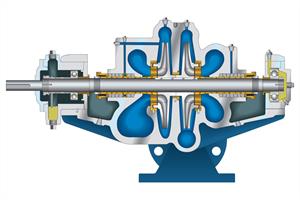

HML Horizontal Multistage SplitcaseThe HML multistage splitcase pumps are used in a variety of commercial & industrial applications where high temperature and high pressure are present. HML pumps are industry leading from a feature & benefits standpoint and are specifically designed for the boiler feed markets. This heavy wall, radial, enclosed, 304 investment cast stainless steel impeller design provides a very broad operating range and steep curve slope. These two-stage split case pumps also feature opposed, hydraulically balanced rotor designs eliminating the need for expensive balancing drums. This hydraulically balanced design also allows for a single row inboard and single row outboard bearing arrangement with optional double row bearings at either location. The new Unified-Bore is another CPS-Pumps exclusive design feature that allows the use of packing or component mechanical seal without the need of additional case line boring. Each model features 250# cast dimensional flanges and 420 stainless steel shafting. These industry exclusive features makes this product adaptable for the building trades and HVAC applications.

Flow & Pressure Characteristics

Flows To: 900 GPM (204 m³/hr)
Heads To: 950 Feet (290 m)
Temperatures To: 350ºF (177ºC)
Speed Ranges: 3000 RPM To 3600 RPM

Size Range

1.5×2.5-8 (38/20) – 4×5-11 (100/28)

Features & Benefits

  • Cast iron casing/investment cast 304 stainless steel impellers
  • Exclusive Unified-Bore casing that allows the pump to be provided with packing or mechanical seals without any additional machining modification
  • Grease lubricated bearings with optional ring oil lubrication
  • Optional bearing isolators
  • Fully removable rotor assembly
  • Hydraulically opposed impeller orientation
  • Multi-vane, enclosed, high efficiency impeller with broad band operating range
  • Bronze, labyrinth style, case wear rings offer superior pressure boundary protection
  • 125# suction/250# discharge flange drilled & tapped for easy connection to system piping
  • Drilled & tapped suction & discharge flanges for easy connection to system piping
  • Suction & discharge gauge connections standard
  • Turned, ground and polished 420 stainless steel shaft standard
  • Heavy duty, 304 stainless steel shaft sleeves with separate shaft sleeve nuts
  • Packing standard with optional component and/or cartridge mechanical seals available
  • Single row inboard and single row outboard bearings with optional double row at either location
  • 50,000+ hour minimum L10 bearing life standard

Available Metallurgies

  • Cast iron, ductile iron, 304 stainless steel fitted, 316 stainless steel fitted


  • Building Trades
  • Chemical Processing
  • Food & Beverage
  • General Industry
  • Marine & Offshore
  • Mining & Aggregate
  • Power Generation
  • Oil & Gas
  • Pharmaceutical
  • Pulp & Paper
  • Water Resources
