CNC Non-Clog

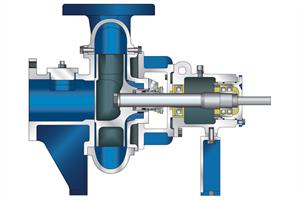

CNC Non-ClogThe CNC non-clog pumps are used in a variety of applications where the fluid has large solids present. Many applications require a heavy duty pump designed to pump large spherical solids. The CNC fluid end uses a specially designed two-vane, large solids handling impeller. This heavy wall, enclosed, two-vane, 304 investment cast stainless steel impeller design provides a durable and dependable product and is perfectly suited for large spherical solids with stringy material present. The enclosed impeller features pump out vanes on the front and rear shrouds to minimize solids buildup. This fluid end is designed to be used in the most aggressive of applications with solids passing capability through 7 inches (180 mm). The flexibility of material combinations makes this product adaptable for the steel mill, mining, power generation, municipal and oil & gas applications.

Flow & Pressure Characteristics

Flows To: 14,000 GPM (3,180 m³/hr)
Heads To: 360 Feet (110 m)
Temperatures To: 500ºF (260ºC)
Solids Passing: To 7 inches (180 mm)
Speed Ranges: 900 RPM To 3600 RPM

Size Range

3×3-10 (80/26) – 14×14-26 (350/66)

Features & Benefits

  • Ductile iron casing (with clean-out port)/304 investment cast impeller
  • Back pump out vanes on front & rear of impeller for hydraulic balancing
  • Back pull out rotor assembly design
  • Optional front wear plate
  • Two vane, enclosed, high efficiency impeller with large solids passing capability
  • Rounded & tapered impeller inlet designed to pass limp, stringy solids
  • 125# suction/125# discharge flange with 250# cast dimensions standard
  • Suction & discharge gauge connections standard
  • Turned, ground and polished 420 stainless steel shaft standard
  • Heavy duty, 304 stainless steel shaft sleeve
  • Packing standard with optional component and/or cartridge mechanical seals available
  • Next-Gen power frame with full micrometer power frame adjustment that has 0.002″ graduations cast on the bearing carrier
  • 50,000+ hour minimum L10 bearing life standard
  • Optional duplex angular contact outboard bearing
  • Optional C-Face motor bracket

Available Metallurgies

  • Cast iron, ductile iron, all bronze, all 304 stainless steel, all 316 stainless steel, all Cd4MCu, all Alloy 20, All Hastalloy (B&C), all 2205 super duplex stainless steel, all 2507 super duplex stainless steel, Cr28, all Titanium


  • Building Trades
  • Chemical Processing
  • Food & Beverage
  • General Industry
  • Irrigation & Agriculture
  • Marine & Offshore
  • Mining & Aggregate
  • Power Generation
  • Oil & Gas
  • Pharmaceutical
  • Pulp & Paper
  • Water Resources
